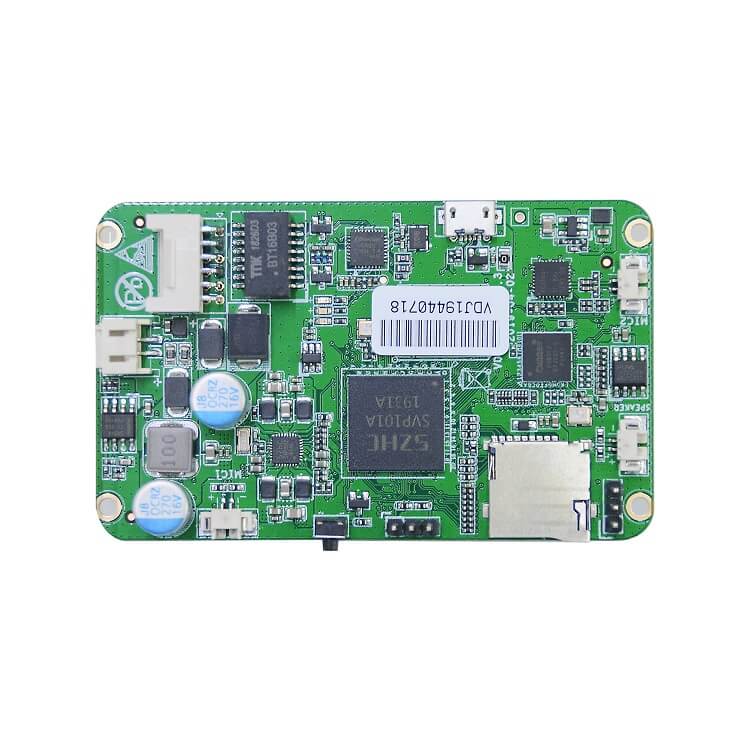

車載自動診斷系統單片機開發

Development of Single Chip Microcomputer for Vehicle Automatic Diagnosis System

OBD作為一個專有名詞的縮寫，其全稱為On Board Diagnostics，中文的意思是：車載自動診斷系統。這套系統能在汽車運行過程中實時監測發動機電控系統及車輛的其它功能模塊的工作狀況，如有發現工況異常，則根據特定的算法判斷出具體的故障，并以診斷故障代碼(DTC，Diagnostic Trouble Codes)的形式存儲在系統內的存儲器上。系統自診斷后得到的有用信息可以為車輛的維修和保養提供幫助，維修人員可以利用汽車原廠專用儀器讀取故障碼，從而可以對故障進行快速定位，以便于對車輛的修理，減少人工診斷的時間。

As an abbreviation of a proper noun, OBD is called On Board Diagnostics. In Chinese, it means: On Board Diagnostics. This system can real-time monitor the working status of the engine electronic control system and other function modules of the vehicle in the process of running. If abnormal working conditions are found, specific faults can be judged according to specific algorithms, and stored in the memory of the system in the form of diagnostic Trouble Codes. The useful information obtained by the system after self-diagnosis can provide help for vehicle maintenance and repair. Maintenance personnel can read the fault codes by using the special equipment of the original factory of the vehicle, so as to locate the fault quickly, so as to facilitate vehicle repair and reduce the time of manual diagnosis.

OBD（車載自動診斷系統）作為汽車發動機電控系統及車輛其他功能模塊工作狀況的信息交匯中心，對汽車故障診斷有著必不可少的作用，對維修人員準確判斷汽車故障原因具有重要的參考價值，目前汽車維修、改裝所使用OBD、ECU都是汽車電子控制系統的重要組成部分。對于汽車的形式安全和維護保養有著重大意義，任何一個細小的失誤都是危害社會的重大問題。汽車電子產品的的加工制造是PCBA行業中對質量管控要求最高的行業之一。

As the information exchange center of the working condition of the automobile engine electronic control system and other function modules, OBD plays an indispensable role in automobile fault diagnosis, and has important reference value for the maintenance personnel to accurately judge the cause of automobile fault. At present, OBD and EC are used in automobile maintenance and refitting. U is an important part of automotive electronic control system. It is of great significance for the form safety and maintenance of automobiles. Any minor mistake is a major problem endangering society. Processing and manufacturing of automotive electronic products is one of the most demanding industries for quality control in PCBA industry.
